Wiring/Electrical |
I had purchased some FMS distributor wires some time ago. I finally got around to installing them after installing the throttle cable and clutch cable. The distributor was removed when I was working on the engine so I also had to make sure that the #1 piston was at TDC when I reinstalled the distributor. |

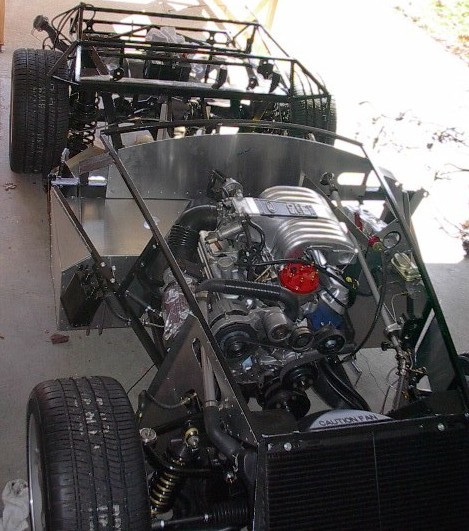

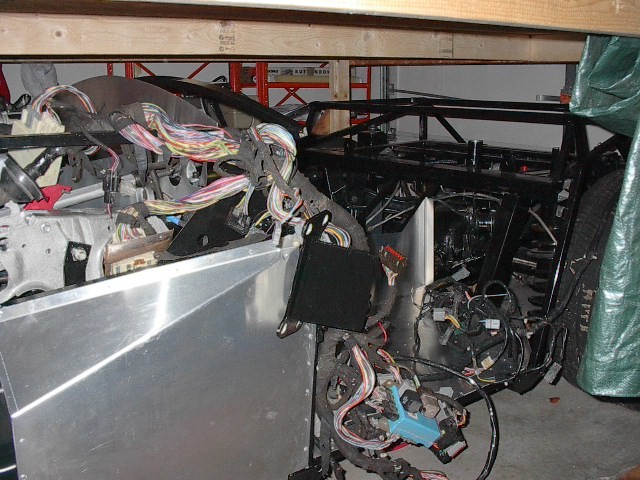

I laid the wiring over the frame and began figuring out where the connectors went. I didn't have any wiring diagram except the Chilton's manual so I was having a difficult time figuring out what went where. |

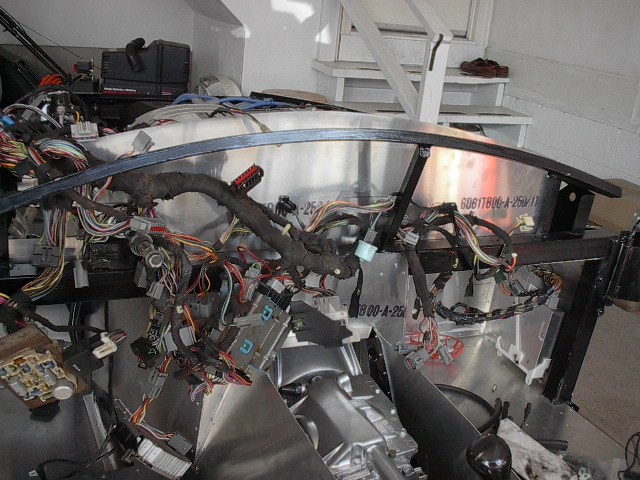

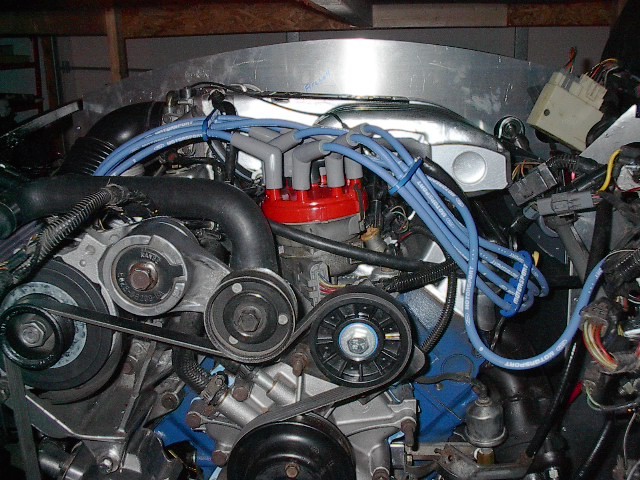

This is a picture before I started laying out all of the wiring. |
I used the Helms diagrams, trouble shooting guide and Chilton's manual to identify all of the conectors. |

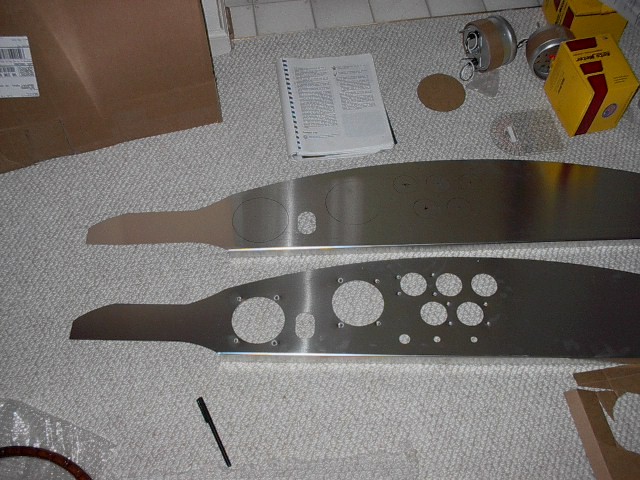

Since I decided to go with Autometer Gauges, I ordered a blank dash from FFR. |

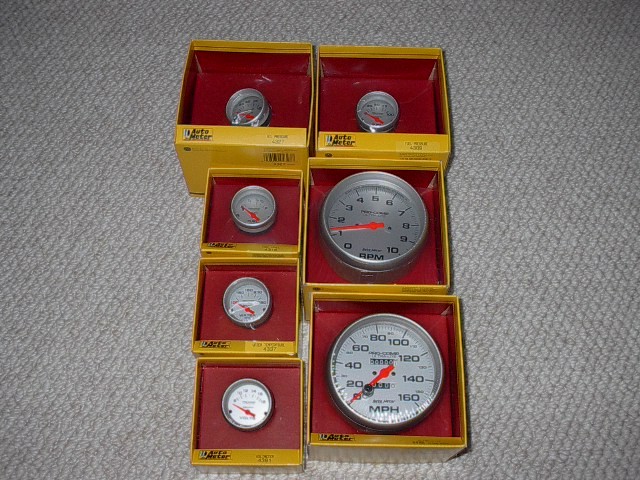

These are the Autometer Gauges! |

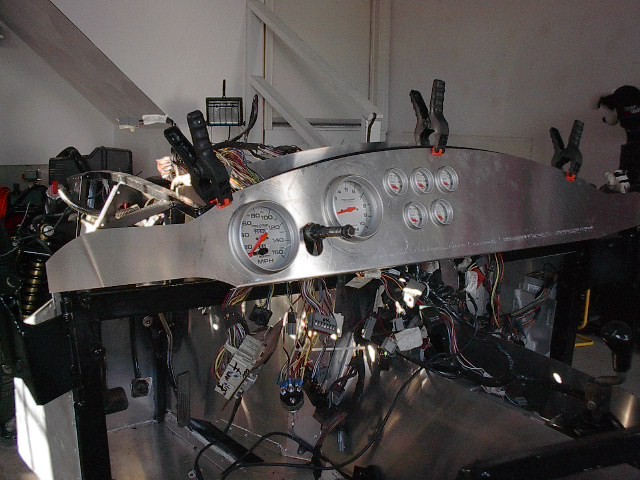

Picture of the gauges installed in the dash. |

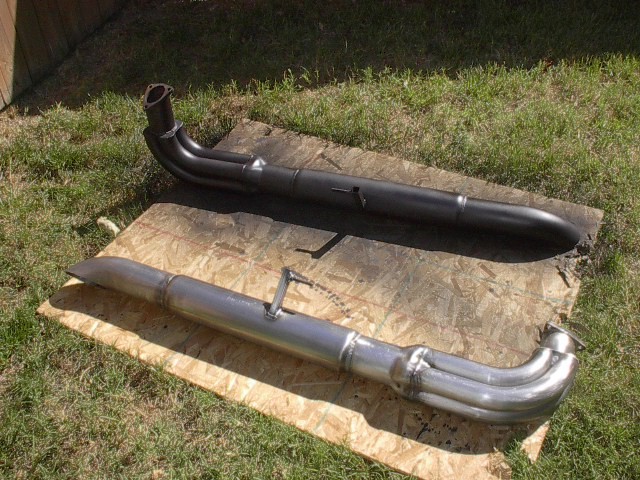

I know this has nothing to do with wiring but I did this while taking a break from the wiring. Painted the side pipes with 1400 C High Temp Paint from Autozone. |

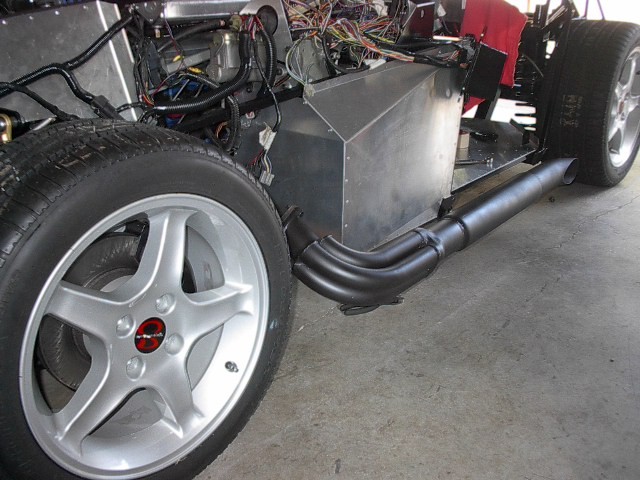

I even bought new exhaust hangars to mount the side pipes. |
