Brake/Fuel Line Installation |

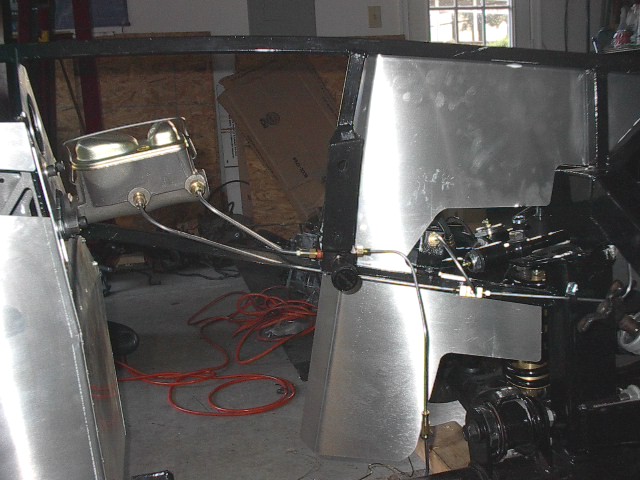

The first thing that I did was plan out the brake system. I tried to confirm some measurements by using wire to simulate the lines. I didn't want to hassle with double flaring my 3/16" lines so I bought preflared lines and adapters from NAPA. Click here to go to the list of parts that you need for this installation. |

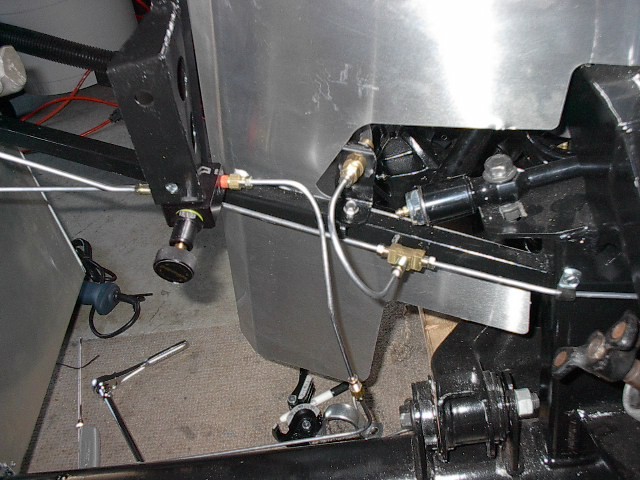

I purchased a proportioning valve from Summit to adjust the bias on the rear brakes. I decided that the best place to mount the valve was under the steering shaft bracket. |
Footboxes |
12" |
"T" Fixture |
51" |
8" |
20" |
8" |
20" |
72" |
51" |
8" |
40" |
40" -> |
<- 72" |
Hope these photos and descriptions give you an idea of what lines were used for this installation. Overall I was quite pleased with the way that the lines came out. I still have to bleed the lines and I hope they work fine. |

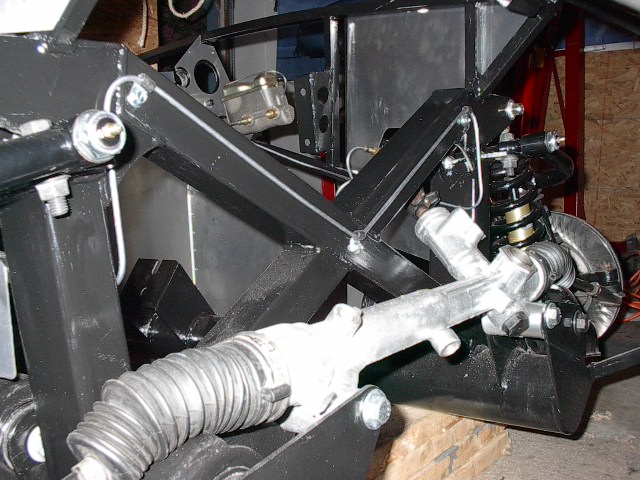

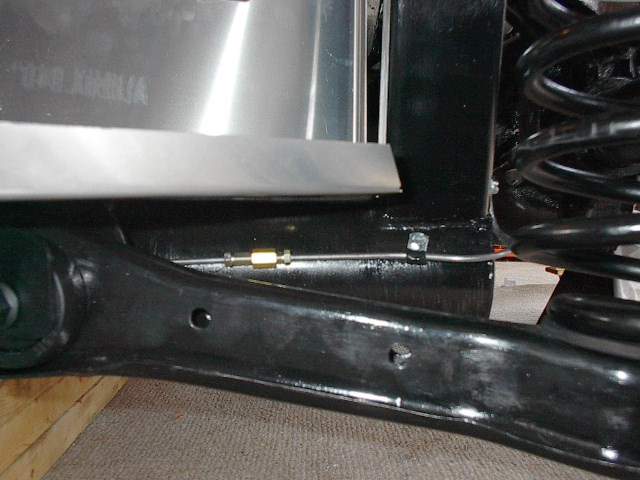

Brake Lines |

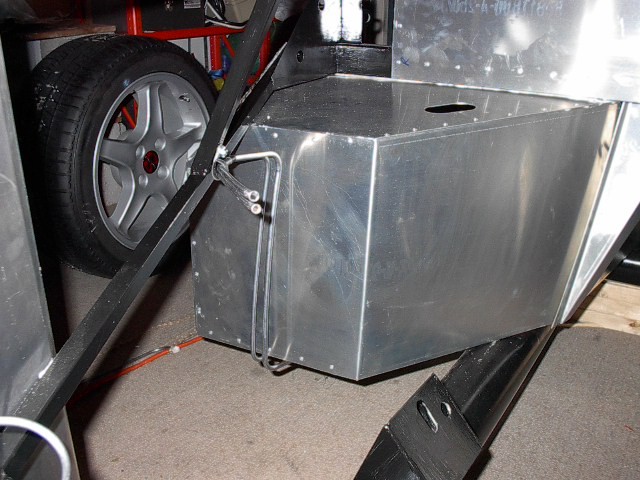

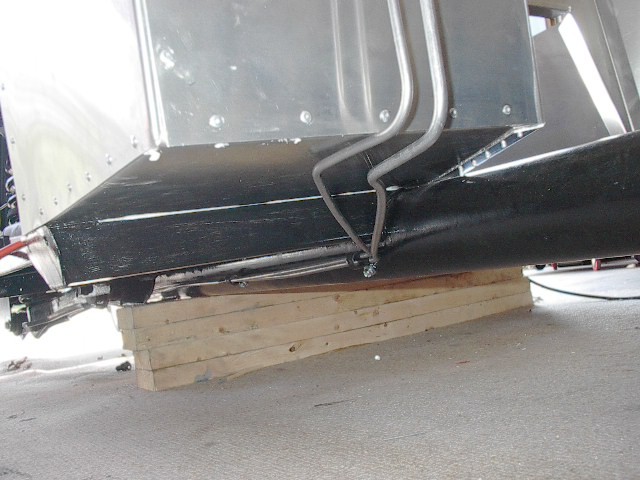

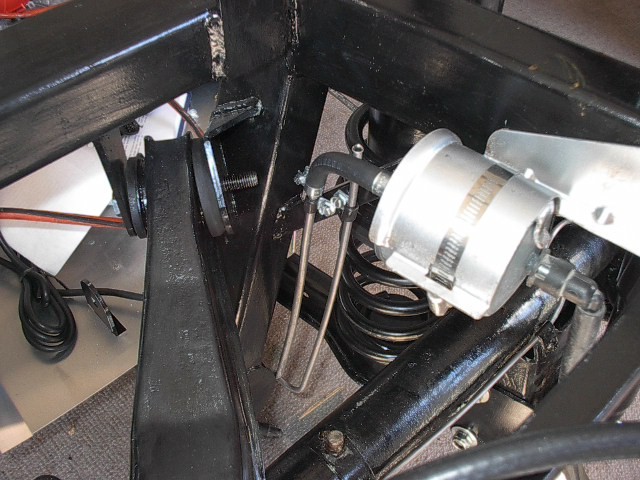

Fuel Lines |
